REINFORCED HARDWARE KIT FOR ORIGINAL SPEEDLINE WHEEL – 205 GTI 1.6: 4 STUDS M12x1.25 L52MM + 4 OPEN FLAT STEEL LUG NUTS 45° M12x1.25 CH19

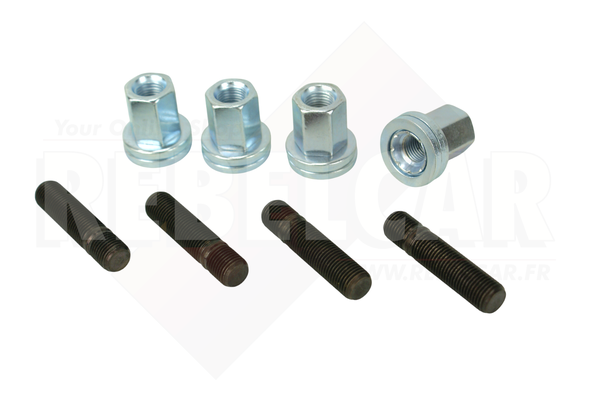

REINFORCED FASTENER KIT FOR SPEEDLINE WHEEL - PEUGEOT 205 GTI 1.6L

1. GENERAL DESCRIPTION

This reinforced fastener kit is specifically designed for mounting OEM SPEEDLINE wheels on the Peugeot 205 GTI 1.6L. It includes all the components needed to install one wheel with maximum reliability: 4 high-strength threaded studs and 4 flat open-end steel lug nuts. This assembly is perfectly suited to meet both the mechanical and aesthetic requirements of the original Speedline wheels, ensuring a strong and authentic fit.

2. TECHNICAL SPECIFICATIONS

- 4 REINFORCED THREADED STUDS:

- Thread: M12 x 1.25 mm (fine pitch, Peugeot standard)
- Total length: 52 mm
- Material: high-strength heat-treated steel
- Surface treatment: anti-corrosion black oxide coating
- Shape: dual-threaded with a smooth center section for precise fitting
- Compatibility: original Peugeot hubs, 4x108 bolt pattern
- Note: once the lug nut is installed, the stud slightly protrudes, ensuring full thread engagement

- 4 FLAT OPEN-END STEEL LUG NUTS:

- Internal thread: M12 x 1.25 mm
- Type: open-end (non-capped)
- Seat: flat 45° (perfect fit for Speedline wheels)
- Wrench size: CH19 (19 mm hex key)
- Material: zinc-coated steel, polished finish
- Function: ensures even pressure on the flat wheel surface without conical distortion

3. COMPATIBILITY

- Vehicle: Peugeot 205 GTI 1.6L
- Wheels: OEM Speedline 1.6L only
- Not compatible with steel wheels or tapered seat wheels
- Not compatible with M12x1.5 or M14 thread sizes

4. INSTALLATION RECOMMENDATIONS

- Thoroughly clean the hub and wheel bore before installation.
- Install the studs manually—do not use power tools.
- If screwing in the studs, apply a drop of medium-strength threadlocker (blue Loctite).
- Do not lubricate the threads: reliable torque requires dry threads.
- Use a torque wrench: recommended torque for M12x1.25 lug nuts is 90–95 Nm.
- Tighten following a crisscross pattern to ensure even wheel seating.
- Recheck torque after the first 50 km.
